Wiseco Forged Piston Kit 97.00 mm 12.5:1 CR for Yamaha YZ426 F 2000–2002 4693M09700

Wiseco Forged Piston Kit 97.00 mm 12.5:1 CR for Yamaha YZ426 F 2000–2002 4693M09700

£233.86 GBP
£233.86 GBP
Sale Sold out
Taxes included.

Wiseco 4693M09700 is a piston kit for a 97.00 mm bore.

Wiseco catalogue applications

Make Model Years
Yamaha YZ426 F 2000–2002
Yamaha WR426 F 2001–2002

Specifications

  • Manufacturer part number: 4693M09700
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 97.00 MM
  • Piston Diameter: 96.92 MM
  • Piston Oversize: 2.00 MM
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 12.5:1

Included components

Ring Set #3819XS, Piston pin #S660, Circlip #CW19.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

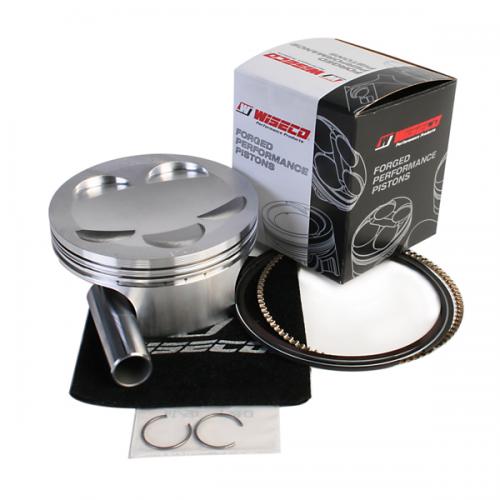

Manufacturer photograph for this reference. Packaging presentation may change.
