Wiseco Forged Piston Kit 55.00 mm 9.4:1 CR for Honda XR100 1981–1984 4666M05500

Wiseco 4666M05500 is a piston kit for a 55.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4666M05500
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 55.00 MM
• Piston Diameter: 54.97 MM
• Piston Oversize: 2.00 MM
• Piston Material: 4032
• Skirt Coating: No
• Compression Ratio Actual: 9.4:1

Included components

Ring Set #2165XE, Piston pin #S593, Circlip #CW14.

Cylinder preparation

Wiseco specifies: Bore and Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

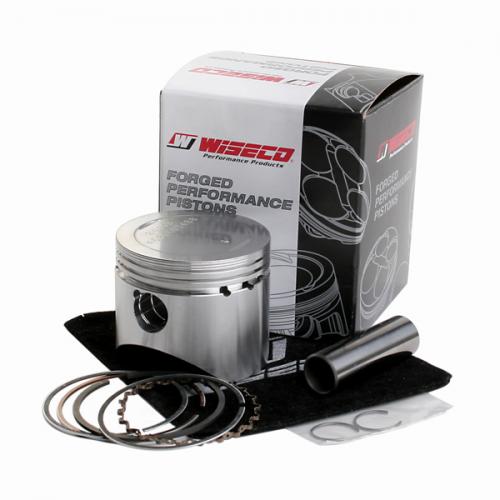

Manufacturer photograph for this reference. Packaging presentation may change.
