Wiseco Forged Piston Kit 87.00 mm 11:1 CR for Honda XR400 R 1996–2004 4628M08700

Wiseco 4628M08700 is a piston kit for a 87.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4628M08700
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 87.00 MM
• Piston Diameter: 86.95 MM
• Piston Oversize: 2.00 MM
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 11:1

Included components

Ring Set #3425XC, Piston pin #S520, Circlip #CW20.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

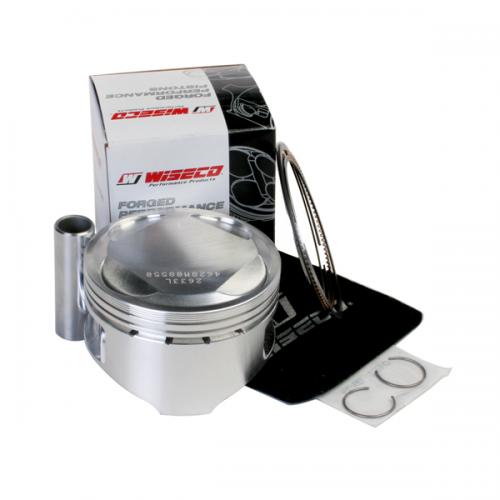

Manufacturer photograph for this reference. Packaging presentation may change.
