Wiseco Forged Piston Kit 98.00 mm 10:1 CR for Yamaha TT600 1984–2004 4607M09800

Wiseco Forged Piston Kit 98.00 mm 10:1 CR for Yamaha TT600 1984–2004 4607M09800

£183.36 GBP
£183.36 GBP
Sale Sold out
Taxes included.

Wiseco 4607M09800 is a piston kit for a 98.00 mm bore.

Wiseco catalogue applications

Make Model Years
Yamaha TT600 1984–2004
Yamaha XT600 1984–2004
Yamaha SRX600 1984–1996
Yamaha Tenere600 1984–1996
Yamaha YFM600 Grizzly 1998–2001

Specifications

  • Manufacturer part number: 4607M09800
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 98.00 MM
  • Piston Diameter: 97.92 MM
  • Piston Oversize: 3.00 MM
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 10:1

Included components

Ring Set #3858XH, Piston pin #S550, Circlip #CW22.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

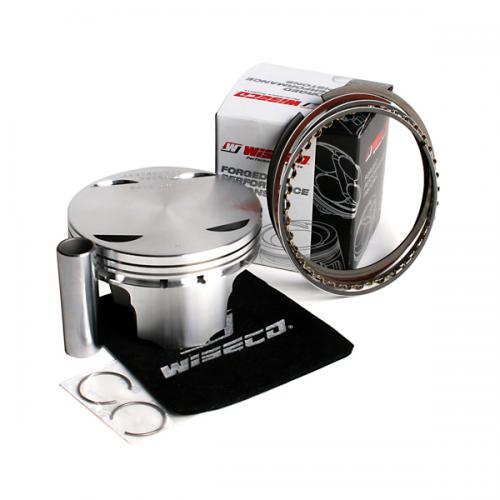

Manufacturer photograph for this reference. Packaging presentation may change.
