Wiseco Forged Piston Kit 80.00 mm 10.5:1 CR for Suzuki DR350 1990–1999 4576M08000

Wiseco 4576M08000 is a piston kit for a 80.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4576M08000
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 80.00 MM
• Piston Diameter: 79.95 MM
• Piston Oversize: 1.00 MM
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 10.5:1

Included components

Ring Set #3150XG, Piston pin #S520, Circlip #CW20.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

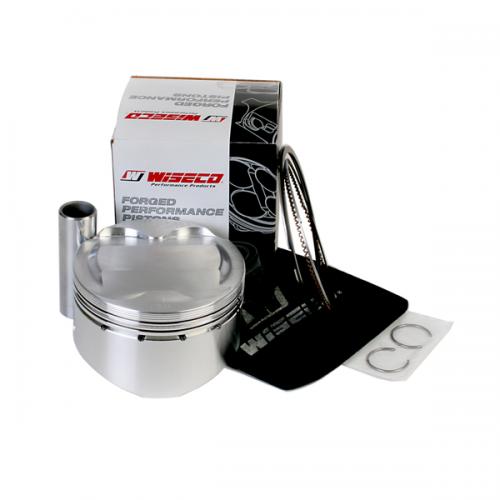

Manufacturer photograph for this reference. Packaging presentation may change.
