Wiseco Forged Piston Kit 49.00 mm for Suzuki RM80 1977–1981 456M04900

Wiseco 456M04900 is a piston kit for a 49.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 456M04900
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 49.00 MM
• Piston Diameter: 48.95 MM
• Piston Oversize: STD
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #1929CD, Piston pin #S538, Circlip #CW12.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

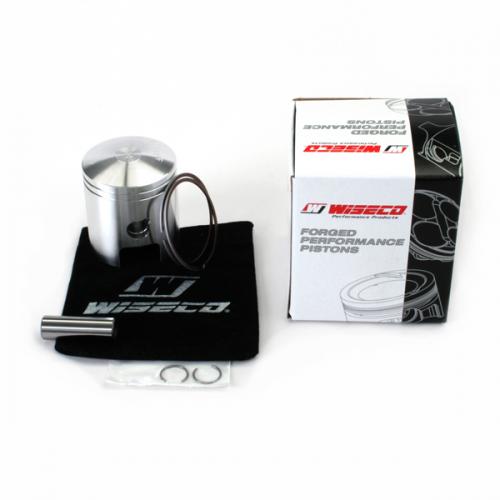

Manufacturer photograph for this reference. Packaging presentation may change.
