WISECO.hoco

Wiseco Forged Piston Kit 71.00 mm 11:1 CR for Suzuki GSXR750 1990–1991 4503M07100

Wiseco Forged Piston Kit 71.00 mm 11:1 CR for Suzuki GSXR750 1990–1991 4503M07100

Regular price £152.61 GBP
Regular price Sale price £152.61 GBP
Sale Sold out
Taxes included.

Wiseco 4503M07100 is a piston kit for a 71.00 mm bore.

Wiseco catalogue applications

Make Model Years
Suzuki GSXR750 1990–1991

Specifications

  • Manufacturer part number: 4503M07100
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 71.00 MM
  • Piston Diameter: 70.95 MM
  • Piston Oversize: 1.00 MM
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 11:1

Included components

Ring Set #2795XA, Piston pin #S537, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

  • Suzuki GSXR750 1990–1991: Oil / Air cooled models.

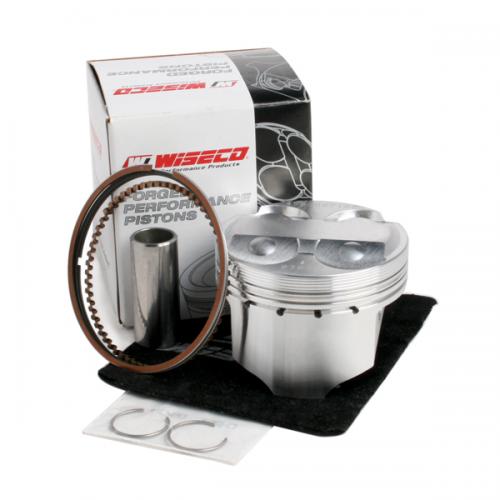

Manufacturer photograph for this reference. Packaging presentation may change.
