Wiseco Forged Piston Kit 75.00 mm 12:1 CR for Honda TRX250 X 1987–1992 4440M07500

Wiseco 4440M07500 is a piston kit for a 75.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4440M07500
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 75.00 MM
• Piston Diameter: 74.95 MM
• Piston Oversize: 1.00 MM
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 12:1

Included components

Ring Set #2953XC, Piston pin #S523, Circlip #CW17.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

• Honda TRX250 X 1987–1992: 4-valve engine configuration.

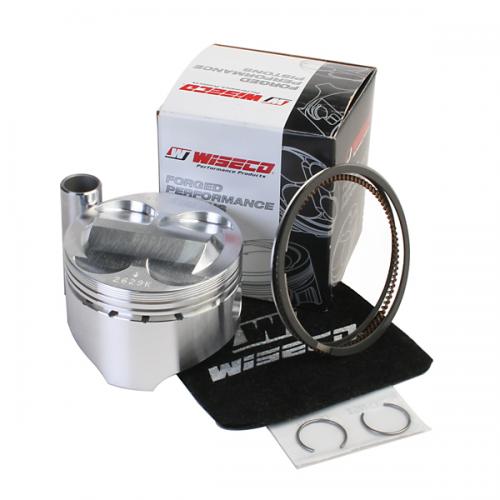

Manufacturer photograph for this reference. Packaging presentation may change.
