Wiseco Forged Piston Kit 58.00 mm for Yamaha YZ125 1976–1982 435M05800

Wiseco 435M05800 is a piston kit for a 58.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 435M05800
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 58.00 MM
• Piston Diameter: 57.95 MM
• Piston Oversize: 2.00 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

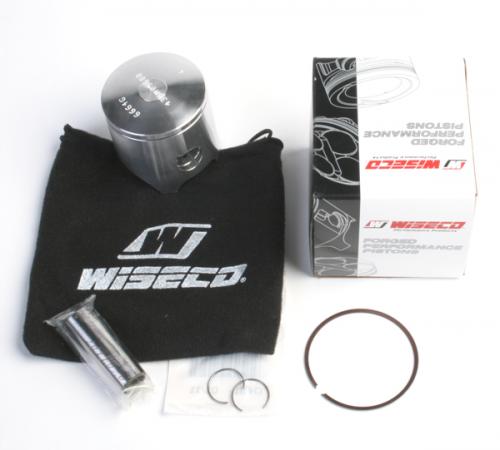

Ring Set #2284CS, Piston pin #S270, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Manufacturer photograph for this reference. Packaging presentation may change.
