Wiseco Forged Piston Kit 54.00 mm for Suzuki RM125 1977–1980 432M05400

Wiseco 432M05400 is a piston kit for a 54.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 432M05400
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 54.00 MM
• Piston Diameter: 53.95 MM
• Piston Oversize: STD
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2126CD, Piston pin #S593, Circlip #CW14.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

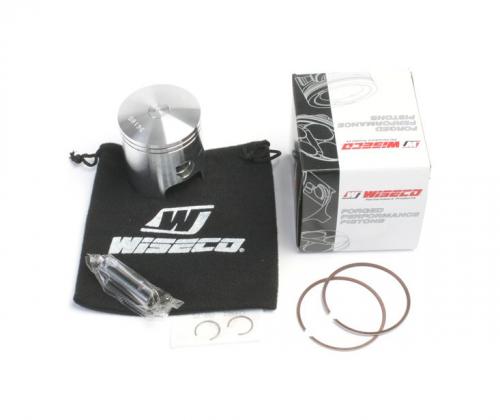

Manufacturer photograph for this reference. Packaging presentation may change.
