Wiseco Forged Piston Kit 65.50 mm 12:1 CR for Honda ATC200 E, X, M, Big Red 1981–1985 4289M06550

Wiseco Forged Piston Kit 65.50 mm 12:1 CR for Honda ATC200 E, X, M, Big Red 1981–1985 4289M06550

£134.14 GBP
£134.14 GBP
Sale Sold out
Taxes included.

Wiseco 4289M06550 is a piston kit for a 65.50 mm bore.

Wiseco catalogue applications

Make Model Years
Honda ATC200 E, X, M, Big Red 1981–1985
Honda ATC200 S 1981–1986
Honda TRX200 1981–1985

Specifications

  • Manufacturer part number: 4289M06550
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 65.50 MM
  • Piston Diameter: 65.45 MM
  • Piston Oversize: 0.50 MM
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 12:1

Included components

Ring Set #2579XC, Piston pin #S522, Circlip #CW15.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

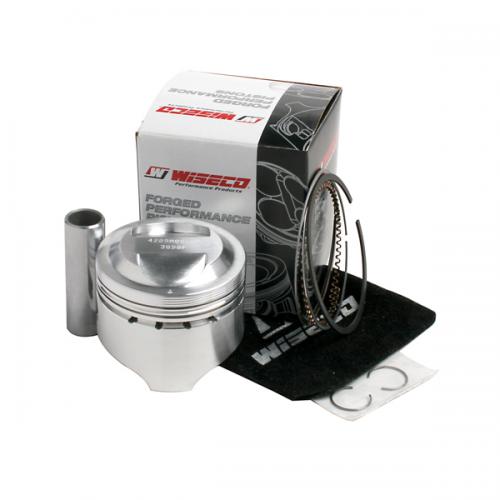

Manufacturer photograph for this reference. Packaging presentation may change.
