Wiseco Forged Piston Kit 72.00 mm for Kawasaki 750 Mach IV 1972–1975 423M07200

Wiseco 423M07200 is a piston kit for a 72.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 423M07200
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 72.00 MM
• Piston Diameter: 71.92 MM
• Piston Oversize: 3.50 MM
• Piston Material: 4032
• Skirt Coating: Yes

Included components

Ring Set #2835CD, Piston pin #S259, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

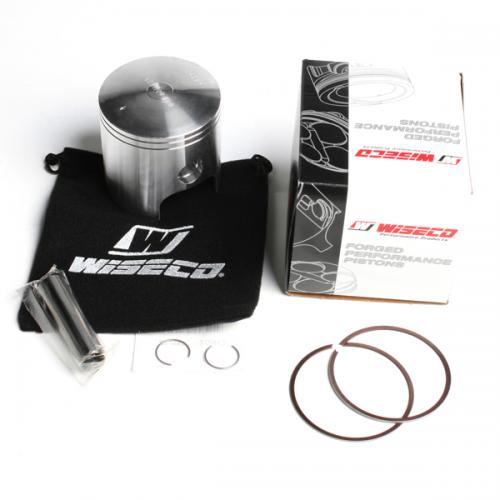

Manufacturer photograph for this reference. Packaging presentation may change.
