Wiseco Forged Piston Kit 95.00 mm 10.5:1 CR for Honda XR500, XR500 R 1979–1982 4117M09500

Wiseco 4117M09500 is a piston kit for a 95.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4117M09500
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 95.00 MM
• Piston Diameter: 94.95 MM
• Piston Oversize: 6.00 MM
• Piston Material: 4032
• Skirt Coating: No
• Compression Ratio Actual: 10.5:1

Included components

Ring Set #3740XH, Piston pin #S527, Circlip #CW21.

Cylinder preparation

Wiseco specifies: Resleeve.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

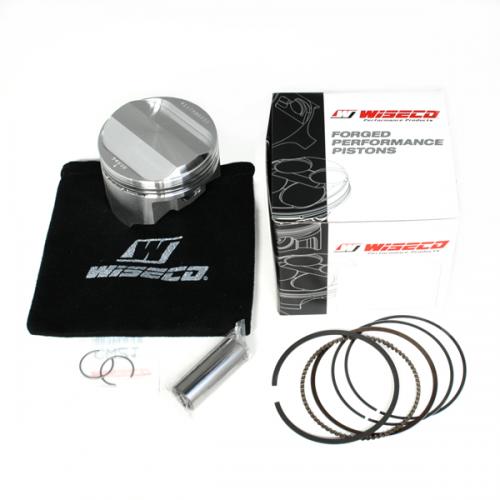

Manufacturer photograph for this reference. Packaging presentation may change.
