Wiseco Forged Piston Kit 89.50 mm 10.5:1 CR for Honda XR500, XR500 R 1979–1982 4117M08950

Wiseco Forged Piston Kit 89.50 mm 10.5:1 CR for Honda XR500, XR500 R 1979–1982 4117M08950

£191.97 GBP
£191.97 GBP
Sale Sold out
Taxes included.

Wiseco 4117M08950 is a piston kit for a 89.50 mm bore.

Wiseco catalogue applications

Make Model Years
Honda XR500, XR500 R 1979–1982
Honda XL500 S, XL500 R 1979–1982
Honda FT500 1982–1984

Specifications

  • Manufacturer part number: 4117M08950
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 89.50 MM
  • Piston Diameter: 89.45 MM
  • Piston Oversize: 0.50 MM
  • Piston Material: 2618
  • Skirt Coating: No
  • Compression Ratio Actual: 10.5:1

Included components

Ring Set #3524XC, Piston pin #S527, Circlip #CW21.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

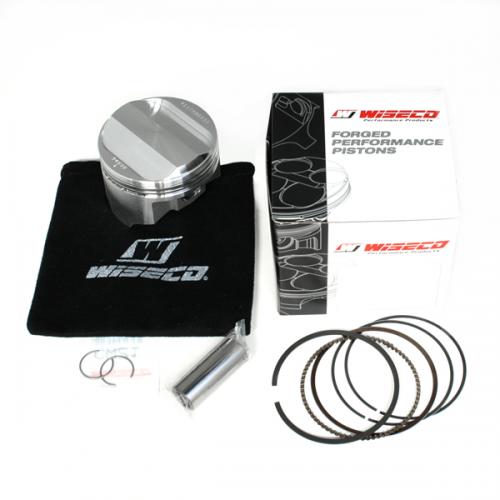

Manufacturer photograph for this reference. Packaging presentation may change.
