Wiseco Forged Piston Kit 47.00 mm 10.5:1 CR for Polaris Sportsman90 2007–2014 40122M04700
Wiseco Forged Piston Kit 47.00 mm 10.5:1 CR for Polaris Sportsman90 2007–2014 40122M04700
Regular price
£130.85 GBP
Regular price
Sale price
£130.85 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Wiseco 40122M04700 is a piston kit for a 47.00 mm bore.
Wiseco catalogue applications
| Make | Model | Years |
|---|---|---|
| Polaris | Sportsman90 | 2007–2014 |
Specifications
- Manufacturer part number: 40122M04700
- Product Series: 4 Stroke Forged Series
- Bore Diameter: 47.00 MM
- Piston Diameter: 46.95 MM
- Piston Oversize: STD
- Piston Material: 4032
- Skirt Coating: No
- Compression Ratio Actual: 10.5:1
Included components
Ring Set #1850XE, Piston pin #S592, Circlip #CW13.
Cylinder preparation
Wiseco specifies: Deglaze / Hone.
Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

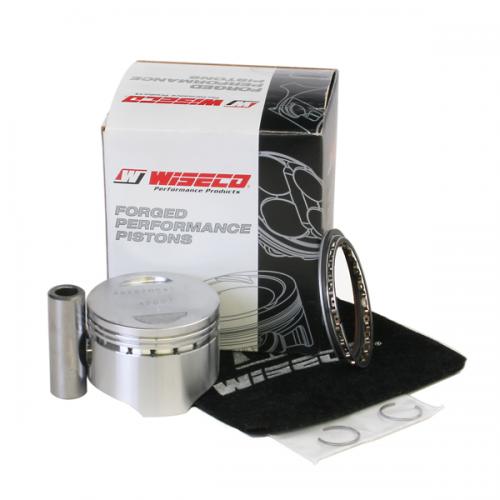

Manufacturer photograph for this reference. Packaging presentation may change.
