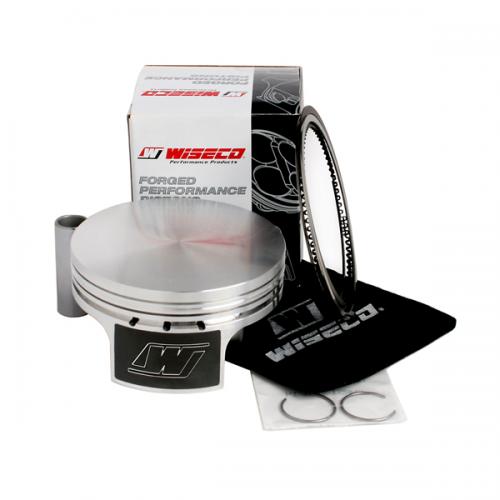

Wiseco Forged Piston Kit 92.00 mm 12.5:1 CR for Arctic Cat Thundercat1000 2009–2010 40081M09200

Wiseco Forged Piston Kit 92.00 mm 12.5:1 CR for Arctic Cat Thundercat1000 2009–2010 40081M09200

£190.82 GBP
£190.82 GBP
Sale Sold out
Taxes included.

Wiseco 40081M09200 is a piston kit for a 92.00 mm bore.

Wiseco catalogue applications

Make Model Years
Arctic Cat Thundercat1000 2009–2010
Arctic Cat TRV1000 2009–2013
Arctic Cat Mud Pro1000 2010–2014
Arctic Cat Prowler1000 2010–2014
Arctic Cat Wildcat1000 2012–2014

Specifications

  • Manufacturer part number: 40081M09200
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 92.00 MM
  • Piston Diameter: 91.95 MM
  • Piston Oversize: STD
  • Piston Material: 2618
  • Skirt Coating: Yes
  • Compression Ratio Actual: 12.5:1

Included components

Ring Set #9200XX, Piston pin #S549, Circlip #CW20.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
