Wiseco Forged Piston Kit 104.00 mm 10.5:1 CR for Honda TRX700 XX 2008–2012 40075M10400

Wiseco 40075M10400 is a piston kit for a 104.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 40075M10400
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 104.00 MM
• Piston Diameter: 103.92 MM
• Piston Oversize: 2.00 MM
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 10.5:1

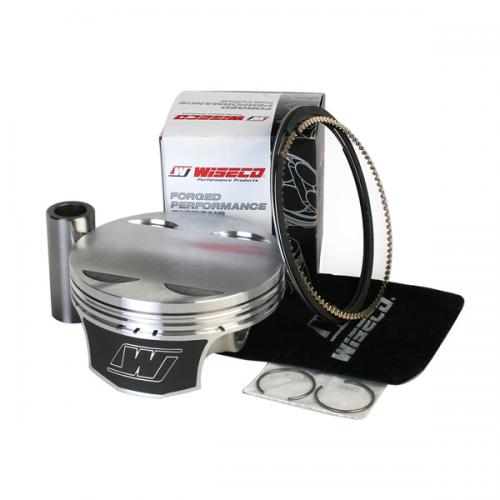

Included components

Ring Set #10400XS, Piston pin #S657, Circlip #CW24.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
