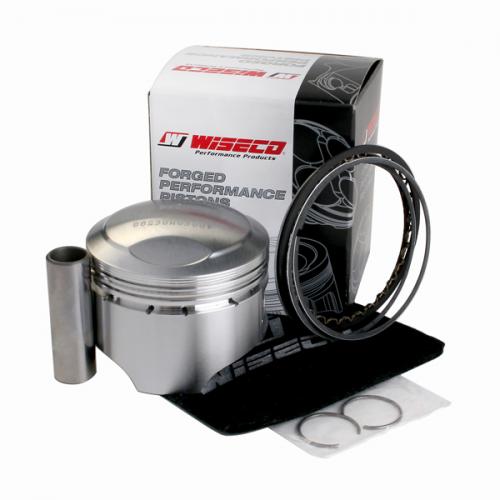

Wiseco Forged Piston Kit 66.00 mm 10.5:1 CR for Honda CB350 1968–1973 40060M06600

Wiseco 40060M06600 is a piston kit for a 66.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 40060M06600
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 66.00 MM
• Piston Diameter: 65.95 MM
• Piston Oversize: 1.00 MM
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 10.5:1

Included components

Ring Set #2598XC, Piston pin #S522, Circlip #CW15.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
