WISECO.hoco

Wiseco Forged Piston Kit 92.00 mm for Can-Am Outlander400 2003–2015 40030M09200

Wiseco Forged Piston Kit 92.00 mm for Can-Am Outlander400 2003–2015 40030M09200

Regular price £143.57 GBP
Regular price Sale price £143.57 GBP
Sale Sold out
Taxes included.

Wiseco 40030M09200 is a piston kit for a 92.00 mm bore.

Wiseco catalogue applications

Make Model Years
Can-Am Outlander400 2003–2015
Can-Am Outlander800 2006–2015

Specifications

  • Manufacturer part number: 40030M09200
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 92.00 MM
  • Piston Diameter: 91.95 MM
  • Piston Oversize: 1.00 MM
  • Piston Material: 2618
  • Skirt Coating: Yes

Included components

Ring Set #9200XX, Piston pin #S641, Circlip #W5509.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

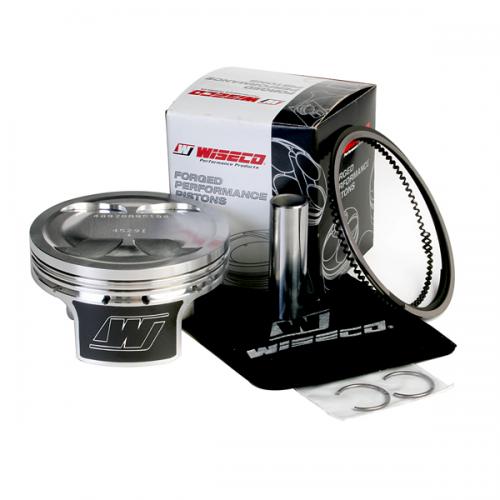

Manufacturer photograph for this reference. Packaging presentation may change.
