Wiseco Forged Piston Kit 67.00 mm 13.5:1 CR for Honda CBR600 RR 2007–2023 40008M06700

Wiseco 40008M06700 is a piston kit for a 67.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 40008M06700
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 67.00 MM
• Piston Diameter: 66.95 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: Yes
• Compression Ratio Actual: 13.5:1

Included components

Ring Set #2638XA, Piston pin #S571, Circlip #CW15.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

• Honda CBR600 RR 2007–2023, Honda Hawk NT650 Hawk GT Twin 1989–1991, Honda CB750 F 1969–1978, Honda CB750 K 1979–1982, Honda CB900 F 1981–1982, Honda CBR900 RR 1996–1999: 2 valve SOHC engine configuration.
• Honda CBR600 RR 2007–2023, Honda Hawk NT650 Hawk GT Twin 1989–1991, Honda CB750 F 1969–1978, Honda CB750 K 1979–1982, Honda CB900 F 1981–1982, Honda CBR900 RR 1996–1999: 4 valve DOHC engine configuration.

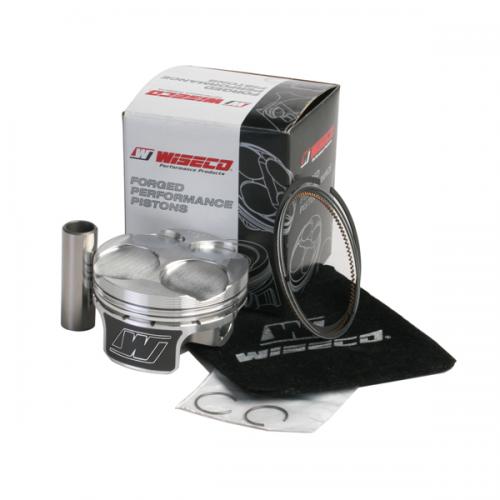

Manufacturer photograph for this reference. Packaging presentation may change.
