Wiseco Forged Piston Kit 66.00 mm for Yamaha RD400 1976–1979 393M06600

Wiseco Forged Piston Kit 66.00 mm for Yamaha RD400 1976–1979 393M06600

Regular price £146.23 GBP
Regular price Sale price £146.23 GBP
Sale Sold out
Taxes included.

Wiseco 393M06600 is a piston kit for a 66.00 mm bore.

Wiseco catalogue applications

Make Model Years
Yamaha RD400 1976–1979

Specifications

  • Manufacturer part number: 393M06600
  • Product Series: 2 Stroke Forged Series
  • Bore Diameter: 66.00 MM
  • Piston Diameter: 65.92 MM
  • Piston Oversize: 2.00 MM
  • Piston Material: 4032
  • Skirt Coating: No

Included components

Ring Set #2598CD, Piston pin #S486, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

  • Yamaha RD400 1976–1979: Reed induction.
  • Yamaha RD400 1976–1979: This kit excludes gaskets.

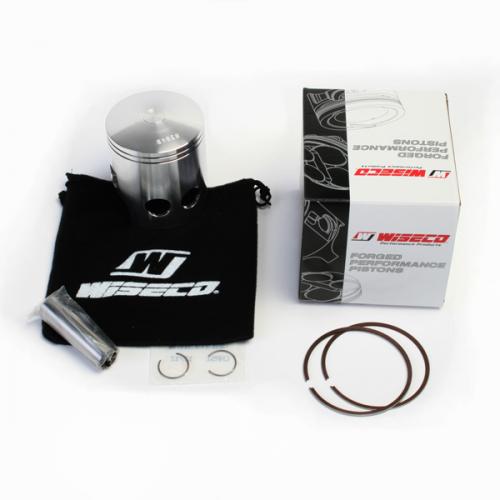

Manufacturer photograph for this reference. Packaging presentation may change.
