Wiseco Forged Piston Kit 71.50 mm for Suzuki DS250 1980 380M07150

Wiseco 380M07150 is a piston kit for a 71.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 380M07150
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 71.50 MM
• Piston Diameter: 71.42 MM
• Piston Oversize: 1.50 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2815CD, Piston pin #S343, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

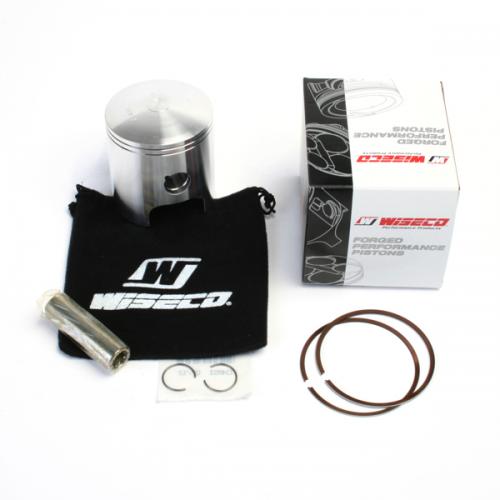

Manufacturer photograph for this reference. Packaging presentation may change.
