Wiseco Forged Piston Kit 86.50 mm for Yamaha DT400 1975–1978 232M08650

Wiseco 232M08650 is a piston kit for a 86.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 232M08650
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 86.50 MM
• Piston Diameter: 86.42 MM
• Piston Oversize: 1.50 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #3405TD, Piston pin #S277, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

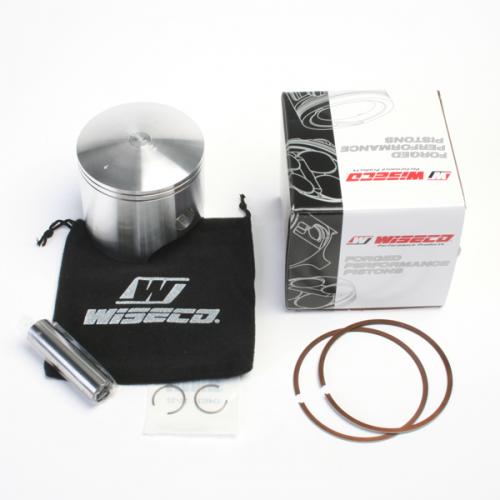

Manufacturer photograph for this reference. Packaging presentation may change.
