Wiseco Forged Piston Kit 85.00 mm for Yamaha DT400 1975–1978 232M08500

Wiseco 232M08500 is a piston kit for a 85.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 232M08500
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 85.00 MM
• Piston Diameter: 84.92 MM
• Piston Oversize: STD
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #3347TD, Piston pin #S277, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

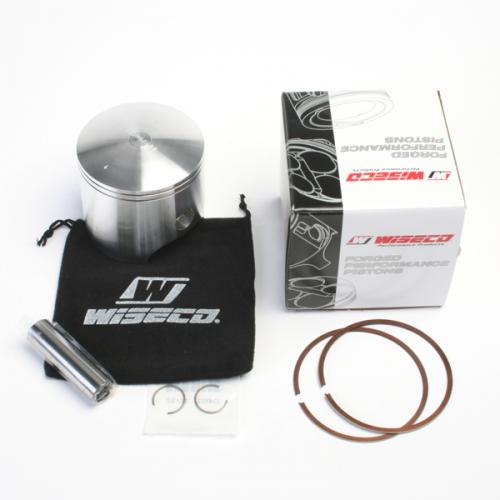

Manufacturer photograph for this reference. Packaging presentation may change.
