Wiseco Forged Piston Kit 65.00 mm for Suzuki DS185 1978–1980 176M06500

Wiseco 176M06500 is a piston kit for a 65.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 176M06500
• Product Series: 2 Stroke Forged Series
• Bore Diameter: 65.00 MM
• Piston Diameter: 64.92 MM
• Piston Oversize: 1.00 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2559CD, Piston pin #S256, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

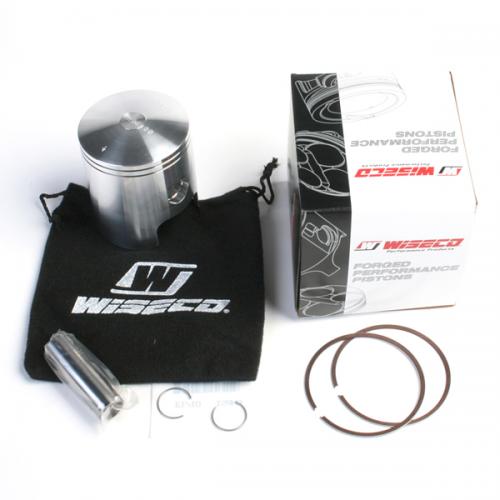

Manufacturer photograph for this reference. Packaging presentation may change.
