Supersprox Stealth rear sprocket 52T 520 pitch Black KDX 200 1989–2006 RST-460:52-BLK

Supersprox Stealth rear sprocket in the specification listed below.

Specification

• Manufacturer part number: RST-460:52-BLK
• Teeth: 52
• Material: Aluminum Center/Steel Teeth
• Chain: 520
• Color: Black

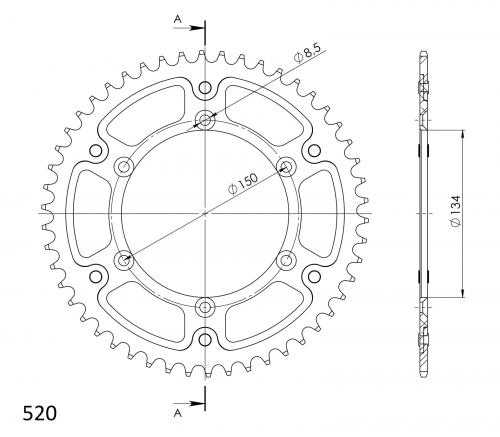

• Inner diameter (ID): 134
• Pitch circle diameter (PCD): 150
• Bolt hole: 8.5

Verified applications

• KDX 200 1989–2006
• KDX 200 1986–1988
• KDX 200 1984–1985
• KDX 250 1991–1994
• KLX 250 R 1994–1996
• KLX 250 S 2006–2014
• KLX 300 R 2003–2007
• KLX 450 R 2008–2016
• KLX 650 R A1, A2, A3, D1 1993–1996
• KLX250 S SKFA 2019–2026
• KLX300 A2-A7 1997–2002
• KX 125 K1-K2 1994–1995
• KX 125 K3-K4 1996–1997
• KX 125 K5 1998–1998
• KX 125 L1 1999–1999
• KX 125 L2-L4 2000–2002
• KX 125 M1 2003–2003
• KX 125 M2,M3,M6F,M7F,M8F 2004–2008
• KX 250 1982–1982
• KX 250 1994–1996
• KX 250 1998–1998
• KX 250 1997–1997
• KX 250 1992–1993
• KX 250 1990–1991
• KX 250 1987–1989
• KX 250 1986–1986
• KX 250 2006–2008
• KX 250 2005–2008
• KX 250 2002–2004
• KX 250 1999–2001
• KX 250 1985–1985
• KX 250 1983–1984
• KX 250 F 2011–2017
• KX 250 F 2006–2010
• KX 250 F N1,N2 2004–2005
• KX 250 KX252 4-Stroke 2020–2026
• KX 250 KX252 4-Stroke 2018–2026
• KX 450 F 2006–2026
• KX 500 1987–2005
• RMZ 250 2004–2006
• RMZ 250 (Kawa-suki) 2004–2006

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
