Supersprox Stealth rear sprocket 49T 520 pitch ORG TT-R 230 2005–2026 RST-245:49-ORG

Supersprox Stealth rear sprocket in the specification listed below.

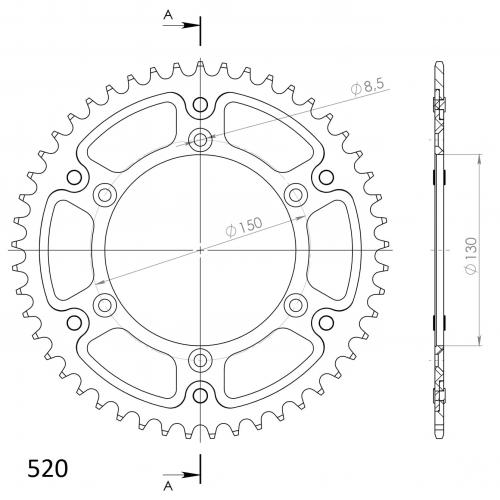

Specification

• Manufacturer part number: RST-245:49-ORG
• Teeth: 49
• Material: Aluminum Center/Steel Teeth
• Chain: 520
• Color: ORG
• Inner diameter (ID): 130
• Pitch circle diameter (PCD): 150
• Bolt hole: 8.5

Verified applications

• TT-R 230 2005–2026
• WR 250 F 2001–2006
• WR 250 F 2015–2026
• WR 250 F 2007–2010
• WR 250 F 2007–2026
• WR 250 X 2008–2015
• WR 400 F 1999–2001
• WR 426 F 2000–2002
• WR 450 F 2003–2006
• WR 450 F 2007–2009
• WR 450 F 2010–2026
• YZ 125 1999–2001
• YZ 125 2002–2004
• YZ 125 2005–2026
• YZ 250 1999–2026
• YZ 250 F 2001–2004
• YZ 250 F 2014–2026
• YZ 250 F 2010–2013
• YZ 250 F 2005–2009
• YZ 250 FX 2015–2026
• YZ 250 X 2016–2026
• YZ 400 F 1999–1999
• YZ 426 F 2000–2002
• YZ 450 F 2003–2004
• YZ 450 F 2005–2006
• YZ 450 F 2007–2009
• YZ 450 F 2010–2013
• YZ 450 F 2014–2014
• YZ 450 F 2015–2026
• YZ 450 FX 2016–2026

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
