Supersprox Stealth rear sprocket 48T 520 pitch Gold 660 Daytona 2024–2026 RST-2013:48-GLD

Supersprox Stealth rear sprocket in the specification listed below.

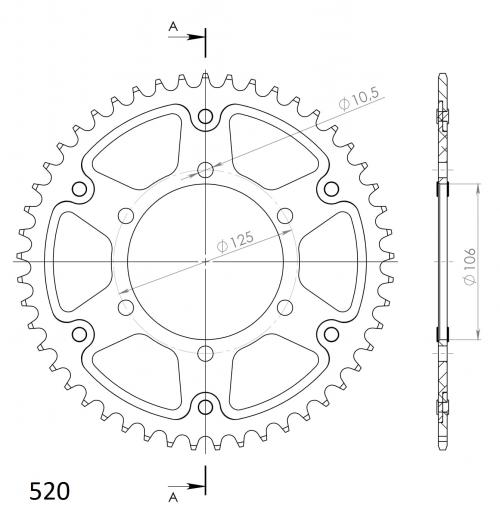

Specification

• Manufacturer part number: RST-2013:48-GLD
• Teeth: 48
• Material: Aluminum Center/Steel Teeth
• Chain: 520
• Color: Gold
• Inner diameter (ID): 106
• Pitch circle diameter (PCD): 125
• Bolt hole: 10.5

Verified applications

• 660 Daytona 2024–2026
• 660 Trident 2021–2026
• 675 Daytona (520 conv.) 2006–2026
• 675 Street Triple (520 conv.) 2007–2026
• 765 Street Triple R (520 conv.) 2023–2026
• 765 Street Triple R (520 conv.) 2017–2022
• 765 Street Triple R Low (520 conv.) 2023–2023
• 765 Street Triple R Low (520 conv.) 2018–2022
• 765 Street Triple RS (520 conv.) 2023–2026
• 765 Street Triple RS (520 conv.) 2017–2022
• 765 Street Triple S (520 conv.) 2020–2026
• 800 Tiger (520 conv.) 2011–2014
• 800 Tiger XC, XRX, XCA, XRT, XCX, XR (520 conv.) 2011–2026
• 865 Speedmaster 2016–2026
• 900 BONNEVILLE T100 2017–2026
• 900 BONNEVILLE T100 Black 2017–2018
• 900 Street Cup 2016–2026
• 900 Street Scrambler 2016–2026
• 900 Street Twin 2016–2026

Applications marked as conversions require the stated chain-pitch conversion. Match both sprockets and the chain to that pitch.

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
