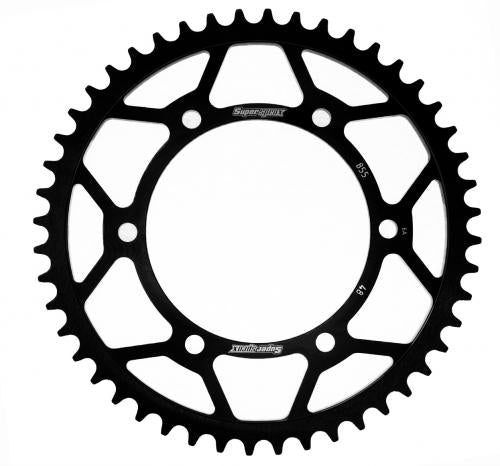

Supersprox steel rear sprocket 48T 520 pitch Black DT250 MX 1980–1982 RFE-855:48-BLK

Supersprox steel rear sprocket in the specification listed below.

Specification

• Manufacturer part number: RFE-855:48-BLK
• Teeth: 48
• Material: Steel
• Chain: 520
• Color: Black
• Inner diameter (ID): 125
• Pitch circle diameter (PCD): 145
• Bolt hole: 10.5

Verified applications

• DT250 MX 1980–1982
• DT250 MX-D, E, F, G, H 1977–1982
• FZR600 R/RC- A/B/D/E/F/G/H/J/K/L (520 conv.) 1990–1999
• FZX700 S/T/CS/CT Fazer USA (520 conv.) 1986–1987
• MT 03 (660cc) 2007–2012
• TDM 850 3VD (520 conv.) 1991–1995
• TDM 850 4TX (520 conv.) 1991–2001
• TDM 850 4TXL (520 conv.) 1996–1998
• TX 660 R 2004–2015
• XJ600 N (4KE,4MB) 1995–2003
• XJ600 N (4KF5) 1998–2000
• XJ600 S-L,M Diversion (4DG) 1999–2000
• XT 660 R (X) 2004–2008
• XT 660 Z TENERE 2008–2012
• XT-Z 750 SUPER TENERE 1990–1998
• XTZ750 SUPER TENERE 3LD 1990–1998

Applications marked as conversions require the stated chain-pitch conversion. Match both sprockets and the chain to that pitch.

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
