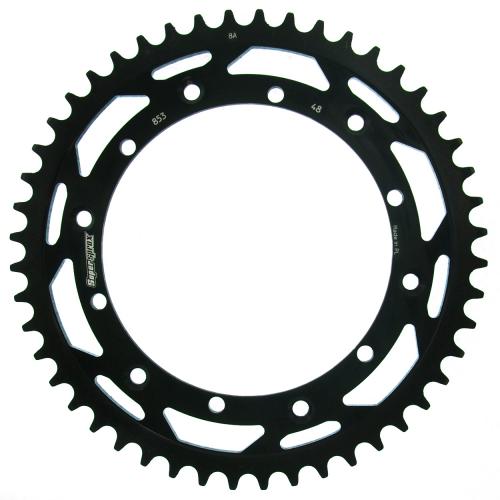

Supersprox steel rear sprocket 48T 520 pitch Black DT200 R-W, D, E, F, G 2YY 1989–1993 RFE-853:48-BLK

Supersprox steel rear sprocket in the specification listed below.

Specification

• Manufacturer part number: RFE-853:48-BLK
• Teeth: 48
• Material: Steel
• Chain: 520
• Color: Black
• Inner diameter (ID): 152
• Pitch circle diameter (PCD): 175
• Bolt hole: 8.5

Verified applications

• DT200 R-W, D, E, F, G 2YY 1989–1993
• DT250 MX 1980–1980
• TT 350 1986–1992
• TT 600 1983–1992
• TT 600 E 1996–2000
• TT 600 R 1998–2003
• TT-R 250 1980–1984
• TT-R 250 1985–1992
• TT-R 250 1999–2006
• WR 125 1998–1998
• WR 200 1991–1994
• WR 250 (YZ 250 WR) 1989–1997
• WR 250 (YZ 250 WR) 1998–1998
• WR 400 F 1998–1998
• WR 500 1992–1994
• YFM 350 WARRIOR 1989–2004
• YFM 660 Raptor 2001–2005
• YFS 200 (L. M. N) 200 BLASTER 1999–2007
• YFS 200 BLASTER 1988–2006
• YFZ 350 BANSHEE 1989–2007
• YZ 125 1997–1998
• YZ 125 G,H,J,K,L,N,S 1980–1986
• YZ 250 1980–1998
• YZ 250, 360, 400 1978–1984
• YZ 400 F 1998–1998
• YZ 465 1980–1981
• YZ 490 1986–1990
• YZ100 J,K 1982–1983

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
