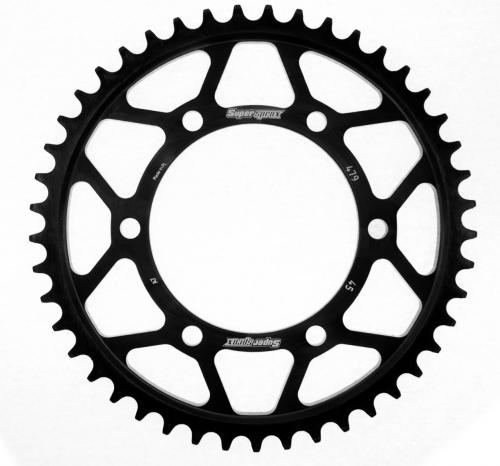

Supersprox steel rear sprocket 45T 530 pitch Black FZ-1 2001–2005 RFE-479:45-BLK

Supersprox steel rear sprocket in the specification listed below.

Specification

• Manufacturer part number: RFE-479:45-BLK
• Teeth: 45
• Material: Steel
• Chain: 530
• Color: Black
• Inner diameter (ID): 110
• Pitch circle diameter (PCD): 130
• Bolt hole: 10.5

Verified applications

• FZ-1 2001–2005
• FZ-1 2006–2014
• FZ-1 ZB/ZCB/ZCR/ZR/AS/ACS/BW/BCW/E/EC/FC 2010–2015
• FZ-6 (FZS-600 SP) (Fazer) 2004–2008
• FZS-1000 FAZER 2001–2005
• GPX500 R 1988–1988
• GPX600 R (ZX600C1-C3, C6-C10) 1988–2000
• GPZ 600 R 1985–1989
• GPZ500 R 1988–1988
• GPZ600 R (ZX600A1-A5) 1985–1989
• GSX-R1000 Commemorative Edition 2016–2016
• GSX-R1000 K9,L0,L2,L3,L4,L5,L6 2009–2016
• GSX-R1000 Moto GP 2016–2016
• MT-01 2005–2011
• XJR1300 5WM 2004–2006
• XJR1300 C Racer 2015–2026
• YZF 1000 R1 2009–2014
• YZF 1000 R1 2004–2008
• YZF 1000 R1 1998–2003
• YZF 1000 R1 LE 2010–2010
• YZF R6 S (This is the sprocket for the S Model) (530 conv.) 2006–2008
• YZF-R6 (5 SL) (530 conv.) 2003–2005
• YZF-R6 S (530 conv.) 2006–2010
• YZF-R7 OWO2 1999–2001
• ZX 600 (A1 - A5) (GPX 600 R) 1985–1989

Applications marked as conversions require the stated chain-pitch conversion. Match both sprockets and the chain to that pitch.

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
