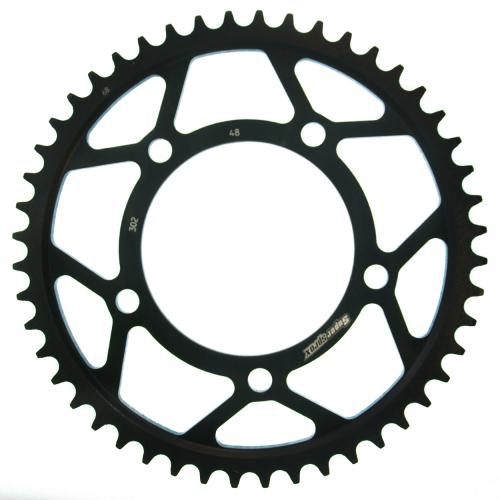

Supersprox steel rear sprocket 48T 530 pitch Black 900 HORNET 2004–2006 RFE-302:48-BLK

Supersprox steel rear sprocket in the specification listed below.

Specification

• Manufacturer part number: RFE-302:48-BLK
• Teeth: 48
• Material: Steel
• Chain: 530
• Color: Black
• Inner diameter (ID): 112
• Pitch circle diameter (PCD): 138
• Bolt hole: 12.5

Verified applications

• 900 HORNET 2004–2006
• 900 HORNET 2002–2003
• CB 1300 2003–2013
• CB 1300 2014–2015
• CB X - 4 1997–1999
• CB1100 2013–2013
• CB1100 A-E-,F 2014–2015
• CB1100 EX-E,F,G,H,J (ABS), (CB1100 CAK) 2015–2026
• CB1100 EX/SP 2017–2026
• CB1100 RS-H,J 2017–2018
• CB1100 RS-K (CB1100 NAK) 2019–2026
• CB1100 SA-E,F 2014–2015
• CB1100 SF X-11 SC42 2000–2003
• CBF1000 F 2006–2010
• CBF1000 F 2011–2015
• CBR 600 FM, FN, FP, FR, FS, FT (PC25) 1991–1996
• CBR1100 XX-V,W,X,Y,1,2,3,4,5,6,7 Blackbird (SC35) 1997–2007
• CBR900 RR N, P, R, S FIRE BLADE SC28 1992–1995
• VTR1000 F Fire Storm 1997–2007

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
