Supersprox steel rear sprocket 46T 520 pitch Black 350 Raptor 2004–2011 RFE-1857:46-BLK

Supersprox steel rear sprocket in the specification listed below.

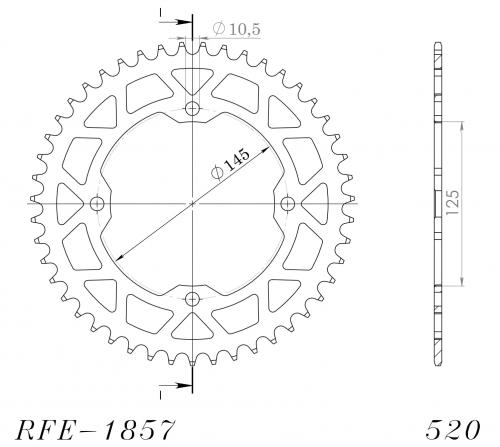

Specification

• Manufacturer part number: RFE-1857:46-BLK
• Teeth: 46
• Material: Steel
• Chain: 520
• Color: Black
• Inner diameter (ID): 125
• Pitch circle diameter (PCD): 145
• Bolt hole: 10.5

Verified applications

• 350 Raptor 2004–2011
• XT400 4 VALVE 1983–1984
• YFM 350 Raptor 2004–2013
• YFM 350 WARRIOR 1987–1988
• YFM 700 Raptor 2006–2026
• YFM250 R-X,Y,Z,A Raptor 2008–2013
• YFM700 2006–2019
• YFZ 350 BANSHEE 1987–1988
• YFZ450 R (YFZ45YSSLM,MB,NB,PB,RD) Special Edition 2020–2026
• YFZ450 R (YFZ45YSXLL,ML,NL,PL,RL) 2020–2026
• YFZ450 R-D,F,E,F,G,H,J,K Special Edition 2013–2019
• YFZ450 R-Y,Z,A,B,D,E,F,G,H,J,K 2009–2019

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
