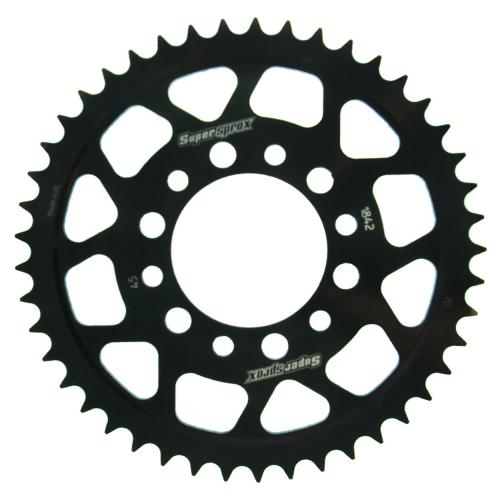

Supersprox steel rear sprocket 45T 428 pitch Black DT 175 1974–1981 RFE-1842:45-BLK

Supersprox steel rear sprocket in the specification listed below.

Specification

• Manufacturer part number: RFE-1842:45-BLK
• Teeth: 45
• Material: Steel
• Chain: 428
• Color: Black
• Inner diameter (ID): 62
• Pitch circle diameter (PCD): 80
• Bolt hole: 10.5

Verified applications

• DT 175 1974–1981
• MX 175 1974–1981
• TW 200 1995–2016
• TW200 T,U,W,A,B,D,E,F 1987–1994
• XT125 1982–2026
• XT200 J,K,CK 1982–1983
• XT350 C N,S,T,U,W,A,B,D,E,F,G,H,J,K,L,M 1985–2000
• XT350 N,S,T,U,W,A,B,D,E,F,G,H,J,K,L,M 1985–2000
• XT350 N,S,T,U,W,A,B,D,E,F,G,H,J,K,L,M (55V,3YT) 1985–2000

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
