Supersprox aluminium rear sprocket 36T 520 pitch Black LT - R 450 Quad Racer 2006–2010 RAL-1760:36-BLK

Supersprox aluminium rear sprocket in the specification listed below.

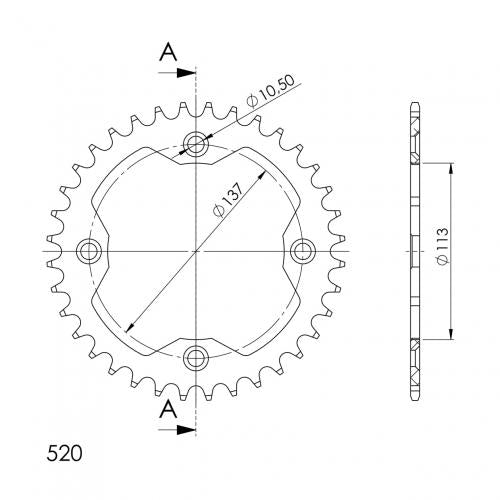

Specification

• Manufacturer part number: RAL-1760:36-BLK
• Teeth: 36
• Material: Aluminium
• Chain: 520
• Color: Black
• Inner diameter (ID): 113
• Pitch circle diameter (PCD): 137
• Bolt hole: 10.5

Verified applications

• LT - R 450 Quad Racer 2006–2010
• LT-Z 400 Quad Sport 2009–2009

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
