Supersprox aluminium rear sprocket 44T 428 pitch Red CB125 F (GLR125) 2015–2020 RAL-1221:44-RED

Supersprox aluminium rear sprocket in the specification listed below.

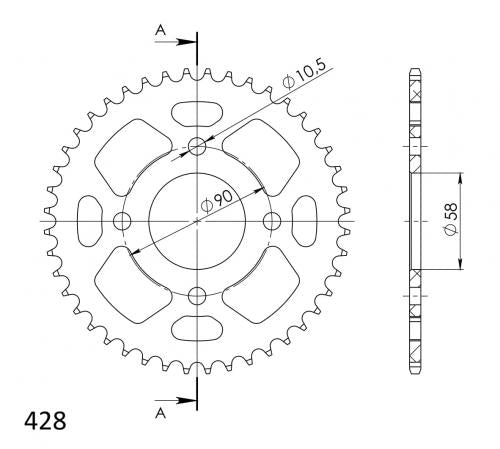

Specification

• Manufacturer part number: RAL-1221:44-RED
• Teeth: 44
• Material: Aluminium
• Chain: 428
• Color: Red
• Inner diameter (ID): 58
• Pitch circle diameter (PCD): 90
• Bolt hole: 10.5

Verified applications

• CB125 F (GLR125) 2015–2020
• CBR 125 R 2012–2016
• CBR125 R-B,C,D,E,F,G 2011–2017

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
