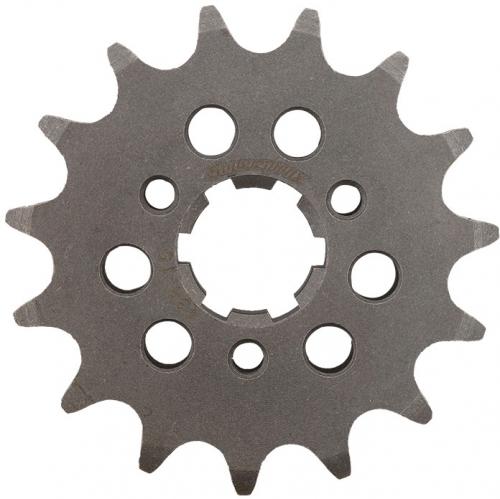

Supersprox front sprocket 15T 520 pitch Black DR 650 SE T,V,W,X,Y,K1-K9,L0,L1,L2,L3 (520 conv.) 1996–2014 CST-438:15.2

Supersprox front sprocket in the specification listed below.

Specification

• Manufacturer part number: CST-438:15.2
• Teeth: 15
• Material: Steel
• Chain: 520
• Color: Black
• Over All Thickness: 10
• Spline ID: 21
• Spline OD: 25
• # of Splines: 3

Verified applications

• DR 650 SE T,V,W,X,Y,K1-K9,L0,L1,L2,L3 (520 conv.) 1996–2014
• DR 750 BIG 1989–1989
• DR650 SE-M0 (520 conv.) 2019–2026
• DR650 SE-T,V,W,X,Y,K1-K9,L0-L8 (520 conv.) 1996–2018
• DR750 S-K, BIG SR41B 1989–1989
• DR800 S BIG 1999–2000
• DR800 S-K, L BIG SR43A/B 1988–1990
• DR800 S-K,L Big 1988–1990
• DR800 S-M, N P BIG SR43B 1991–1993
• DR800 S-M,N,P Big 1991–1993
• XF 650 FREEWIND V,W,X,Y,K1,K2 (520 conv.) 1997–2002

Applications marked as conversions require the stated chain-pitch conversion. Match both sprockets and the chain to that pitch.

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
