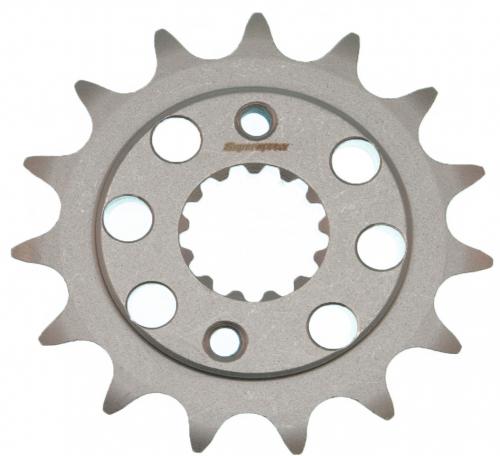

Supersprox front sprocket 15T 525 pitch Black NTV650 J BRO`S 1988–1991 CST-296:15.2

Supersprox front sprocket in the specification listed below.

Specification

• Manufacturer part number: CST-296:15.2
• Teeth: 15
• Material: Steel
• Chain: 525
• Color: Black
• Over All Thickness: 13.5
• Spline ID: 21.7
• Spline OD: 25
• # of Splines: 13

Verified applications

• NTV650 J BRO`S 1988–1991
• VLX600 SHADOW 1990–1990
• VRX400 T Roadster (NC33) 1995–1999
• VT600 C SHADOW, CD Shadow Delux, (VLX),CD2 1989–2007
• XL400 V TRANSALP 1992–1998
• XL600 V-J, K, L TRANSALP PD06 1988–1990
• XL600 V-M, N, P, R, S, T, V, W TRANSALP PD06 1991–1998
• XL600 V-X TRANSALP 1999–2000
• XL650 V TRANSALP 2001–2006
• XL700 V Transalp 2008–2009
• XRV650 AFRICA TWIN PD03 1988–1990

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
