Supersprox front sprocket 15T 520 pitch Black 250 Duke 2016–2026 CST-1403:15.2

Supersprox front sprocket in the specification listed below.

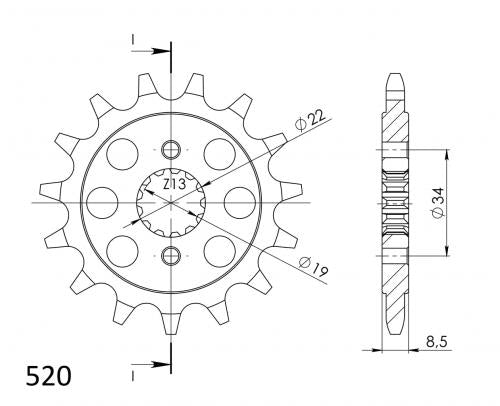

Specification

• Manufacturer part number: CST-1403:15.2
• Teeth: 15
• Material: Steel
• Chain: 520
• Color: Black
• Over All Thickness: 8.5
• Spline ID: 19
• Spline OD: 22
• # of Splines: 13

Verified applications

• 250 Duke 2016–2026
• 390 Adventure 2020–2026
• 390 CR 2014–2016
• 390 Duke 2017–2026
• 390 RC 2017–2026
• Scrambler 400 2024–2026
• Speed 400 2024–2026
• Svartpilen 401 2018–2026
• Vitpilen 401 2018–2026

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
