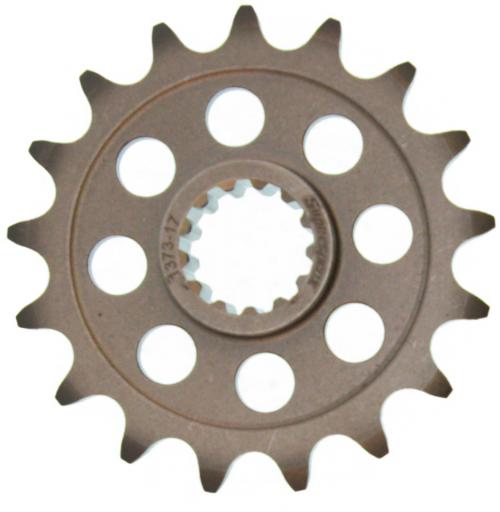

Supersprox front sprocket 17T 520 pitch Black 750 Integra DCT 2014–2026 CST-1373:17.2

Supersprox front sprocket in the specification listed below.

Specification

• Manufacturer part number: CST-1373:17.2
• Teeth: 17
• Material: Steel
• Chain: 520
• Color: Black
• Over All Thickness: 16.8
• Spline ID: 21.7
• Spline OD: 25
• # of Splines: 13

Verified applications

• 750 Integra DCT 2014–2026
• 750 X-ADV 2017–2026
• CT700 D, CN 2014–2016
• CT700 N 2014–2016
• CTX700 DCT 2014–2014
• NC 700 Integra 2013–2026
• NC 750 Integra 2013–2026
• NC 750 S DCT, XD-E,F,G,H, J DCT, J Vultus 2015–2018
• NC 750 S/SA-E,F,G,H,J (ABS), X/XA-E,F,G,H,J (ABS) 2014–2026
• NC 750 S/SA-K (SD-K DCT) (ABS) 2019–2026
• NC750 J Vultus 2015–2017

When changing the tooth count, check chain length, adjustment range and sprocket clearance for the selected gearing.
