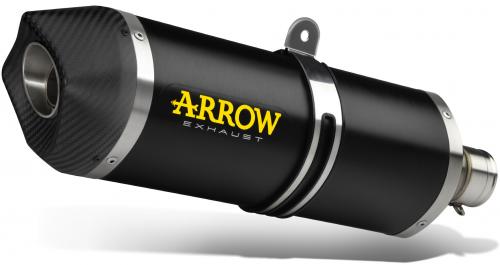

Arrow Race-Tech aluminium silencers (right and left) with carby end cap KTM 950 SM 2006–2009 72613AK

Arrow race-Tech aluminium silencers (right and left) with carby end cap, manufacturer reference 72613AK.

Specification

• Manufacturer part number: 72613AK
• Silencer body material: aluminium
• End-cap material: stainless steel
• Silencer internal material: stainless steel
• Mounting: welded mount
• Silencer body length (mm): 400
• Inlet diameter (mm): 54
• Outlet diameter (mm): 50
• DB-killer specified: Yes
• Oxygen sensor connection: No
• CO sensor connection: No
• Manufacturer component weight (kg): 5.21

Arrow exhaust applications

Installation

This listing is for Arrow reference 72613AK. Other Arrow references in the installation layout are separate components. The model application does not by itself establish a direct connection to every original or aftermarket exhaust.

• Arrow installation layout: KTM 950 SM 2006–2009
• Arrow installation layout: KTM 990 SM/SMR 2008–2013
