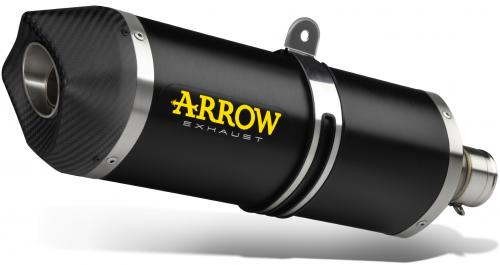

Arrow Race-Tech aluminium silencer with carby end cap Suzuki GSX-S 1000 / 1000 F 2017–2020 71828AK

Arrow race-Tech aluminium silencer with carby end cap, manufacturer reference 71828AK.

Specification

• Manufacturer part number: 71828AK
• Silencer body material: aluminium
• End-cap material: carbon fibre
• Silencer internal material: stainless steel
• Mid-pipe material: stainless steel
• Mounting: satinless steel clamp
• Silencer body length (mm): 300
• Inlet diameter (mm): 51
• Outlet diameter (mm): 50
• DB-killer specified: Yes
• Oxygen sensor connection: No
• CO sensor connection: No
• Manufacturer component weight (kg): 2.83

Arrow exhaust applications

Installation

This listing is for Arrow reference 71828AK. Other Arrow references in the installation layout are separate components. The model application does not by itself establish a direct connection to every original or aftermarket exhaust.

• Arrow installation layout: Suzuki GSX-S 1000 / 1000 F 2017–2020
• Arrow installation layout: Suzuki GSX-S 1000 / 1000 F 2015–2016

Manufacturer fitting instructions

• 3884367.PDF

Application-specific installation conditions

• Suzuki GSX-S 1000 / 1000 F 2017/2020: Where the specified Arrow installation removes the original exhaust valve, valve diagnostics can report a fault and the ECU may enter recovery mode. Arrow recommends a map that disables the valve function or a suitable exhaust-valve emulator for that installation. Arrow technical notice
