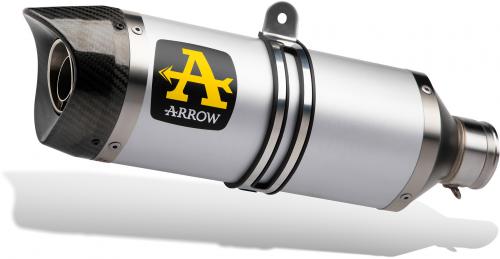

Arrow Thunder aluminium silencer with carby end cap Yamaha MT-09 2013–2020 71812AK

Arrow thunder aluminium silencer with carby end cap, manufacturer reference 71812AK.

Specification

• Manufacturer part number: 71812AK
• Silencer body material: aluminium
• End-cap material: carbon fibre
• Silencer internal material: stainless steel
• Mounting: satinless steel clamp
• Silencer body length (mm): 270
• Inlet diameter (mm): 54
• Outlet diameter (mm): 50
• DB-killer specified: Yes
• Oxygen sensor connection: No
• CO sensor connection: No
• Manufacturer component weight (kg): 2.1

Arrow exhaust applications

Installation

This listing is for Arrow reference 71812AK. Other Arrow references in the installation layout are separate components. The model application does not by itself establish a direct connection to every original or aftermarket exhaust.

• Arrow installation layout: Yamaha MT-09 2013–2020
• Arrow installation layout: Yamaha TRACER 900 2015–2020
• Arrow installation layout: Yamaha TRACER 900 GT 2018–2020

Manufacturer fitting instructions

• 3883483.PDF
