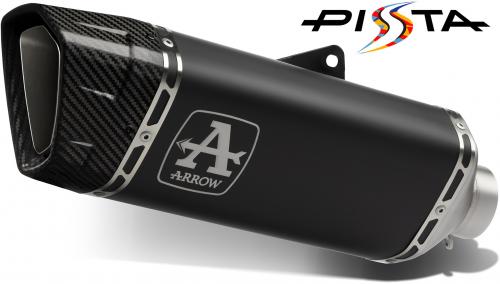

Arrow Pista titanium "Dark" silencer with titanium link pipe Aprilia RSV 4 2025–2026 71003PTN

Arrow pista titanium "Dark" silencer with titanium link pipe, manufacturer reference 71003PTN.

Specification

• Manufacturer part number: 71003PTN
• Silencer body material: Titanium Dark
• End-cap material: carbon fibre
• Silencer internal material: stainless steel
• Mid-pipe material: titanium
• Mounting: welded mount
• Silencer body length (mm): 300
• Inlet diameter (mm): 60
• Outlet diameter (mm): 60
• DB-killer specified: Yes
• Oxygen sensor connection: No
• CO sensor connection: No
• Manufacturer component weight (kg): 2.4

Arrow exhaust applications

Installation

This listing is for Arrow reference 71003PTN. Other Arrow references in the installation layout are separate components. The model application does not by itself establish a direct connection to every original or aftermarket exhaust.

• Arrow installation layout: Aprilia RSV 4 2025–2026
• Arrow installation layout: Aprilia RSV 4 1100 Factory 2021–2024
• Arrow installation layout: Aprilia TUONO V4 1100 2021–2024
• Arrow installation layout: Aprilia TUONO V4 1100 2025–2026

Manufacturer fitting instructions

• 3885186.PDF

Application-specific installation conditions

• Aprilia RSV 4 2025/2026: Arrow warns that the catalyst-removal/link-pipe configuration described in the notice may trigger a catalyst-monitoring ECU warning. Arrow recommends its A.R.D. device 11001EM for the specified configuration. Arrow technical notice
• Aprilia RSV 4 2025/2026: Where the specified Arrow installation removes the original exhaust valve, valve diagnostics can report a fault and the ECU may enter recovery mode. Arrow recommends a map that disables the valve function or a suitable exhaust-valve emulator for that installation. Arrow technical notice
• Aprilia RSV 4 1100 Factory 2021/2024: Where the specified Arrow installation removes the original exhaust valve, valve diagnostics can report a fault and the ECU may enter recovery mode. Arrow recommends a map that disables the valve function or a suitable exhaust-valve emulator for that installation. Arrow technical notice
• Aprilia TUONO V4 1100 2021/2024: Where the specified Arrow installation removes the original exhaust valve, valve diagnostics can report a fault and the ECU may enter recovery mode. Arrow recommends a map that disables the valve function or a suitable exhaust-valve emulator for that installation. Arrow technical notice
• Aprilia TUONO V4 1100 2025/2026: Arrow warns that the catalyst-removal/link-pipe configuration described in the notice may trigger a catalyst-monitoring ECU warning. Arrow recommends its A.R.D. device 11001EM for the specified configuration. Arrow technical notice
• Aprilia TUONO V4 1100 2025/2026: Where the specified Arrow installation removes the original exhaust valve, valve diagnostics can report a fault and the ECU may enter recovery mode. Arrow recommends a map that disables the valve function or a suitable exhaust-valve emulator for that installation. Arrow technical notice
