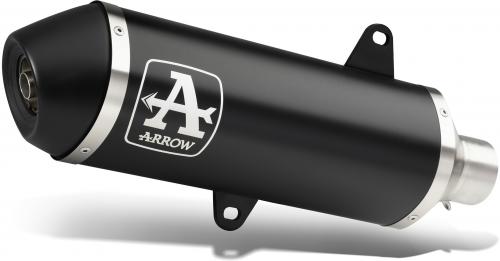

Arrow Urban aluminium "Dark" silencer with carbon end cap Piaggio VESPA GTS 300 all version 2021–2024 53536AKN

Arrow urban aluminium "Dark" silencer with carbon end cap, manufacturer reference 53536AKN.

Specification

• Manufacturer part number: 53536AKN
• Silencer body material: aluminium Dark
• End-cap material: carbon fibre
• Silencer internal material: stainless steel
• Mounting: welded mount
• Silencer body length (mm): 350
• Inlet diameter (mm): 63
• Outlet diameter (mm): 50
• DB-killer specified: Yes
• Oxygen sensor connection: No
• CO sensor connection: No
• Manufacturer component weight (kg): 3.29

Arrow exhaust applications

Installation

This listing is for Arrow reference 53536AKN. Other Arrow references in the installation layout are separate components. The model application does not by itself establish a direct connection to every original or aftermarket exhaust.

• Arrow installation layout: Piaggio VESPA GTS 300 all version 2021–2024
• Arrow installation layout: Piaggio VESPA GTV 300 2023–2024

Manufacturer fitting instructions

• 3884918.PDF
