AFAM Aluminium Rear Sprocket 46T 520 Gun Metal 13814-46

AFAM Aluminium Rear Sprocket 46T 520 Gun Metal 13814-46

£68.76 GBP
£68.76 GBP
Sale Sold out
Taxes included.

Product details

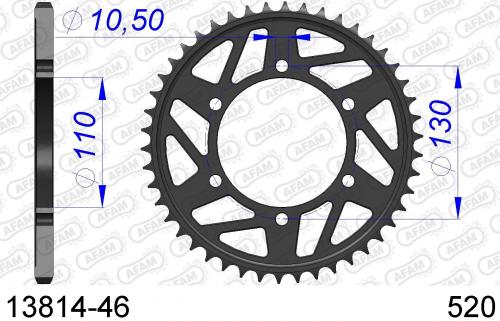

This AFAM aluminium rear sprocket has 46 teeth and is sized for 520 chain.

  • AFAM part number 13814-46
  • Position Rear
  • Tooth count 46
  • Chain size 520
  • Material Aluminium
  • Colour Gun Metal
  • Coating Hard anodised
  • Centre bore 110 mm
  • Bolt pitch circle diameter 130 mm
  • Mounting hole count 6
  • Mounting hole diameter 10.5 mm

REAR ALU 46T, 520

Manufacturer part number: 13814-46

Vehicle applications

Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.

YAMAHA
Model Year
MT03 320 A F ABS 2015
MT03 320 A G ABS 2016
MT03 320 A H ABS 2017
MT03 320 A J ABS 2018
MT03 320 A K ABS 2019
MT03 320 A L ABS 2020
MT03 320 A M ABS 2021
MT03 320 A N ABS 2022
MT03 320 A P ABS 2023
MT03 320 A R ABS 2024
MT03 320 A S ABS 2025
MT03 320 A T ABS 2026
YZF R3 F 2015
YZF R3 G 2016
YZF R3 H 2017
YZF R3 J ABS 2018
YZF R3 K ABS 2019
YZF R3 L ABS 2020
YZF R3 L MONSTER ENERGY ABS 2020
YZF R3 M ABS 2021
YZF R3 N ABS 2022
YZF R3 N WORLD GP 60TH ANNIVERSARY ABS 2022
YZF R3 P ABS 2023
YZF R3 P WORLD GP 60TH ANNIVERSARY ABS 2023
YZF R3 R ABS 2024
YZF R3 S ABS 2025
YZF R3 T ABS 2026
