AFAM Steel Rear Sprocket 38T 520 Black 98300-38

AFAM Steel Rear Sprocket 38T 520 Black 98300-38

£29.69 GBP
£29.69 GBP
Sale Sold out
Taxes included.

Product details

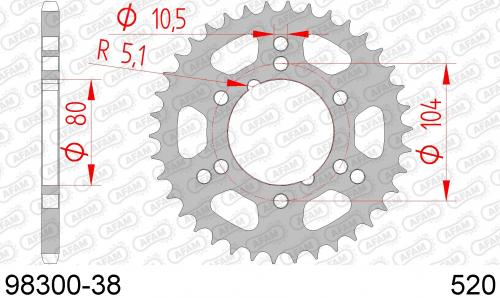

This AFAM steel rear sprocket has 38 teeth and is sized for 520 chain.

  • AFAM part number 98300-38
  • Position Rear
  • Tooth count 38
  • Chain size 520
  • Material Steel
  • Colour Black
  • Coating Cataphoretic coating
  • Centre bore 80 mm
  • Bolt pitch circle diameter 104 mm
  • Mounting hole count 6
  • Mounting hole diameter 10.5 mm

REAR STEEL 38T, 520

Manufacturer part number: 98300-38

Vehicle applications

Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.

POLARIS
Model Year
SCRAMBLER 500 4X4 1 4x4 2001
SCRAMBLER 500 4X4 2 4x4 2002
SCRAMBLER 500 4X4 3 4x4 2003
SCRAMBLER 500 4X4 4 4x4 2004
SCRAMBLER 500 4X4 5 4x4 2005
SCRAMBLER 500 4X4 6 4x4 2006
SCRAMBLER 500 4X4 7 4x4 2007
SCRAMBLER 500 4X4 8 4x4 2008
SCRAMBLER 500 4X4 Y 4x4 2000
SPORTSMAN 500 6X6 1 6X6 2001
SPORTSMAN 500 6X6 2 6X6 2002
SPORTSMAN 500 6X6 3 6X6 2003
SPORTSMAN 500 6X6 4 6X6 2004
SPORTSMAN 500 6X6 5 6X6 2005
SPORTSMAN 500 6X6 6 6X6 2006
SPORTSMAN 500 6X6 7 6X6 2007
SPORTSMAN 500 6X6 8 6X6 2008
SPORTSMAN 500 6X6 Y 6X6 2000
TRAIL BLAZER 250 1 2001
TRAIL BLAZER 250 2 2002
TRAIL BLAZER 250 3 2003
