AFAM Steel Rear Sprocket 48T 530 Black 16701-48
AFAM Steel Rear Sprocket 48T 530 Black 16701-48
Regular price
£45.70 GBP
Regular price
Sale price
£45.70 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Product details

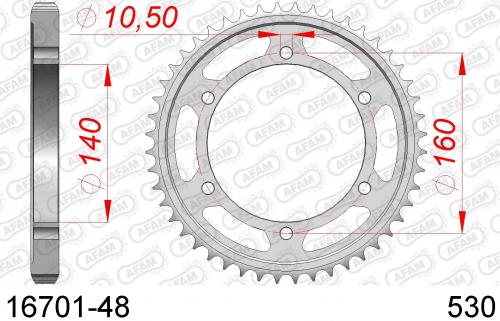

This AFAM steel rear sprocket has 48 teeth and is sized for 530 chain.
- AFAM part number 16701-48
- Position Rear
- Tooth count 48
- Chain size 530
- Material Steel
- Colour Black
- Coating Cataphoretic coating
- Centre bore 140 mm
- Bolt pitch circle diameter 160 mm
- Mounting hole count 6
- Mounting hole diameter 10.5 mm
REAR STEEL 48T, 530
Manufacturer part number: 16701-48
Vehicle applications
Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.
KAWASAKI
| Model | Year |
|---|---|
| GPX 750 R H | 1987 |
| GPZ 750 R F | 1985 |
| GPZ 750 R G | 1986 |
| GPZ 900 R E | 1984 |
| GPZ 900 R F | 1985 |
| GPZ 900 R G | 1986 |
| GPZ 900 R L | 1990 |
| GPZ 900 R P | 1993 |
| GPZ 1100 S | 1995 |
| GPZ 1100 T | 1996 |
| GPZ 1100 T ABS | 1996 |
| GPZ 1100 V | 1997 |
| GPZ 1100 V ABS | 1997 |
| ZR 1100 N ZEPHYR | 1992 |
| ZR 1100 P ZEPHYR | 1993 |
| ZRX 1100 V | 1997 |
| ZRX 1100 W | 1998 |
| ZRX 1100 W | 1998 |
| ZRX 1100 X | 1999 |
| ZRX 1100 X | 1999 |
| ZRX 1100 Y | 2000 |
| ZRX 1100 Y | 2000 |
| ZZR 1100 1 | 2001 |
| ZZR 1100 L | 1990 |
| ZZR 1100 M | 1991 |
| ZZR 1100 N | 1992 |
| ZZR 1100 P | 1993 |
| ZZR 1100 R | 1994 |
| ZZR 1100 S | 1995 |
| ZZR 1100 T | 1996 |
| ZZR 1100 V | 1997 |
| ZZR 1100 W | 1998 |
| ZZR 1100 X | 1999 |
| ZZR 1100 Y | 2000 |
