AFAM Steel Rear Sprocket 33T 630 Silver 16601-33

AFAM Steel Rear Sprocket 33T 630 Silver 16601-33

£44.55 GBP
£44.55 GBP
Sale Sold out
Taxes included.

Product details

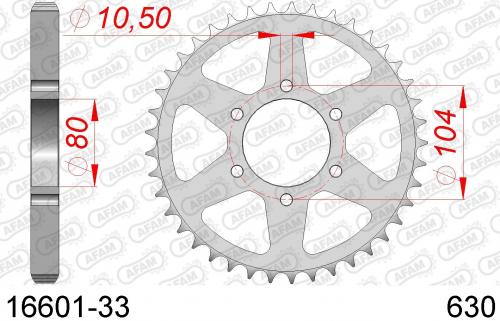

This AFAM steel rear sprocket has 33 teeth and is sized for 630 chain.

  • AFAM part number 16601-33
  • Position Rear
  • Tooth count 33
  • Chain size 630
  • Material Steel
  • Colour Silver
  • Coating Zinc-plated
  • Centre bore 80 mm
  • Bolt pitch circle diameter 104 mm
  • Mounting hole count 6
  • Mounting hole diameter 10.5 mm

REAR STEEL 33T, 630

Manufacturer part number: 16601-33

Vehicle applications

Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.

KAWASAKI
Model Year
GPZ 1100 E 1984
GPZ 1100 F 1985
KZ 650 H B CSR 1981
KZ 650 H C CSR 1982
KZ 650 H D CSR 1983
Z 750 GP E TURBO 1984
Z 750 L E 1984
Z 1000 1979
Z 1000 A A4 1980
Z 1000 A Z1 R 1980
Z 1000 A1 1977
Z 1000 A2 1978
Z 1000 J B 1981
Z 1000 J C 1982
Z 1000 J D 1983
Z 1000 R C REPLICA 1982
Z 1000 R D 1983
Z 1000 R1 C 1982
Z 1000 R2 D 1983
Z 1100 GP D 1983
Z 1100 R E 1984
View full details
