AFAM Steel Rear Sprocket 57T 428 Silver 14216-57

AFAM Steel Rear Sprocket 57T 428 Silver 14216-57

Regular price £30.24 GBP
Regular price Sale price £30.24 GBP
Sale Sold out
Taxes included.

Product details

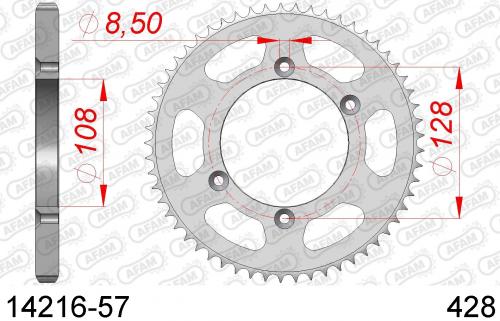

This AFAM steel rear sprocket has 57 teeth and is sized for 428 chain.

  • AFAM part number 14216-57
  • Position Rear
  • Tooth count 57
  • Chain size 428
  • Material Steel
  • Colour Silver
  • Coating Zinc-plated
  • Centre bore 108 mm
  • Bolt pitch circle diameter 128 mm
  • Mounting hole count 4
  • Mounting hole diameter 8.5 mm

REAR STEEL 57T, 428

Manufacturer part number: 14216-57

Vehicle applications

Applications listed by Phoenix Motos. Check the part specifications and application position before ordering.

SUZUKI

Model Year
DRZ 125 L 6 BIG WHEEL 2006
DRZ 125 L 7 BIG WHEEL 2007
DRZ 125 L 8 BIG WHEEL 2008
DRZ 125 L 9 BIG WHEEL 2009
DRZ 125 L A BIG WHEEL 2010
DRZ 125 L B BIG WHEEL 2011
DRZ 125 L C BIG WHEEL 2012
DRZ 125 L D BIG WHEEL 2013
DRZ 125 L E BIG WHEEL 2014
DRZ 125 L F BIG WHEEL 2015
DRZ 125 L G BIG WHEEL 2016
DRZ 125 L H BIG WHEEL 2017
DRZ 125 L J BIG WHEEL 2018
DRZ 125 L K BIG WHEEL 2019
DRZ 125 L L BIG WHEEL 2020
DRZ 125 L M BIG WHEEL 2021
DRZ 125 L N BIG WHEEL 2022
